Automatic chain link fence machine supplier from china


  1. 14 years chain link fence making machinery production experiences
  2. chain link fence making machine export to 34 countries
  3. automatic chain link fence making machine with qualified certificates CE,ISO,SGS,
  4. we offer one stop shopping for metal wire machinery,such as welded mesh making machine and barbed wire machinery
  5. we offer 24 hours online consultant for client,we offer overseas technician for our client.
  6. Automatic chain link fence machine can be divided into two types,single spiral machine and double spiral machine
  7. Galvanized Chain link fence widely apply in boarder fence as its low cost and long service life.
  8. PVC coated chain link fence mostly as garden fence,playground fence,airport fence,school fence as its beautiful appearance,and tensile strength.

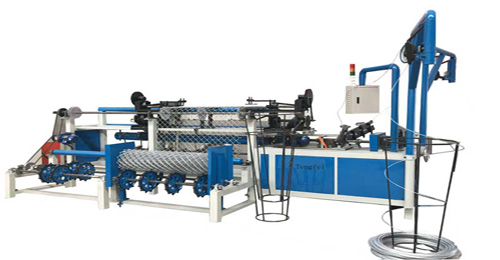

  9. Automatic single spiral chain link fence machine Automatic double spiral chain link fence machine

    Materials:Black wire,PVC coated wire,GI wire

    Material thickness:1.2-5 mm

    Hole size:25*25 mm to 150*150 mm

    Fence height range:0.6 m-6.5 m

    Capacity:80-130 square meter/ hour

    Power:7.95 kw

    Voltage:380V/400V/210V/415V etc

    Machine weight:1800 KGS

    Machine dimension :5800*2300*1750 mm

    Machine with four molds for free

    Materials:Black wire,PVC coated wire,GI wire

    Material thickness:1.8-5 mm

    Hole size:25*25 mm to 150*150 mm

    Fence height range:0.6 m-6.5 m

    Capacity:120-160 square meter/ hour

    Power:9.95 kw

    Voltage:380V/400V/210V/415V etc

    Machine weight:2000 KGS

    Machine dimension:5800*2100*1800 mm

    Machine with two molds for free




Details of chain link fence making machine

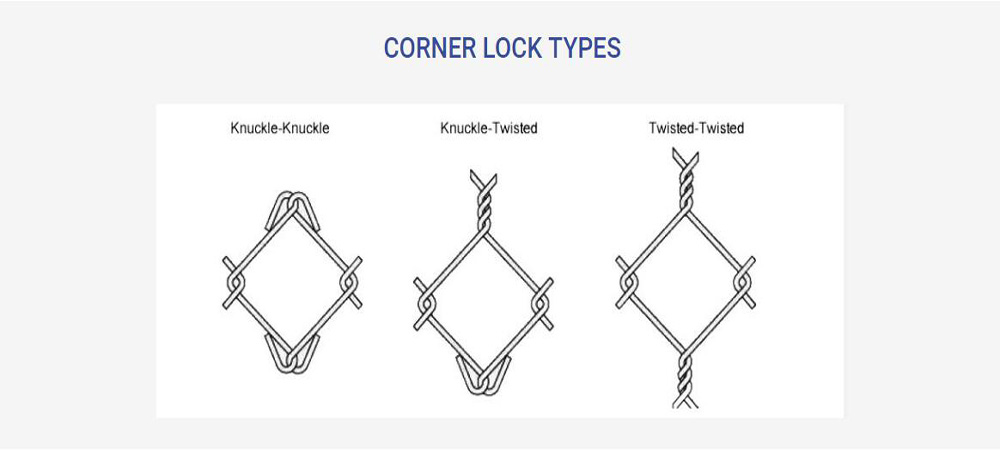

Automatic chain link fence machine with edges twisted system,twisted number can be setting as user's request.

And one machine can be assemble twisted edges and knuckled edges system,client can switch between two options.

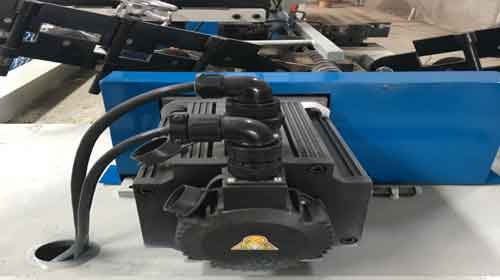

Automatic chain link fence making machine with Servo motors which is precisely cutting and weaving.

Machine work with sensors,and we will send spare sensors for future using based on client request.

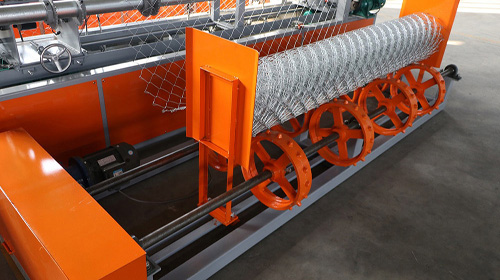

Automatic chain link fence making machine work with automatic mesh rolling system.

we setting the roll length on PLC,when roll length reach setting numbers,its stop work and alarming.

Worker unload mesh rolls with hands,and start production for next chain link fence rolls.

Automatic chain link fence making machine work with positioning needle,which positioning the mesh.

Automatic chain link fence machine work with high quality alloy mold which service life long to 7 yeas.

Machine with water pump,and soap water as lubrication and cooling mold to guarantee machine work for 24 hours.


Automatic chain link fence making machine work with this alarming.

When wires broken,or wires mixed together,the alarming system work to light and make alarming sound.

We just need solve the wire problem,and start machine again.

Automatic chain link fence making machine work with Delta servo motor,and Dellixi electrics.

Machine always in good performance and high capacity condition with such brand parts.

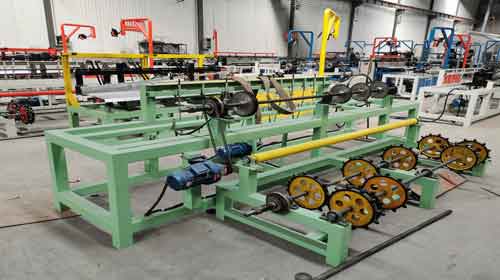

Automatic chain link fence making machine in our workshop

We have some automatic chain link fence machines in stock for selling,and we can produce

chain link fence making machine with client special request,its custom made chain link fence making machine

Automatic chain link fence machine colors be painted as client request,if no special request

we painting chain link fence making machine with our standard color. OEM service for chain link fence machine.

This is automatic chain link fence machine for philippines client.

Client book two sets double spiral chain link fence making machine.


This is automatic double spiral chain link fence machine for South America client.

Client book 6 sets chain link fence machine,and client is big manufacturer in local market .
