Description

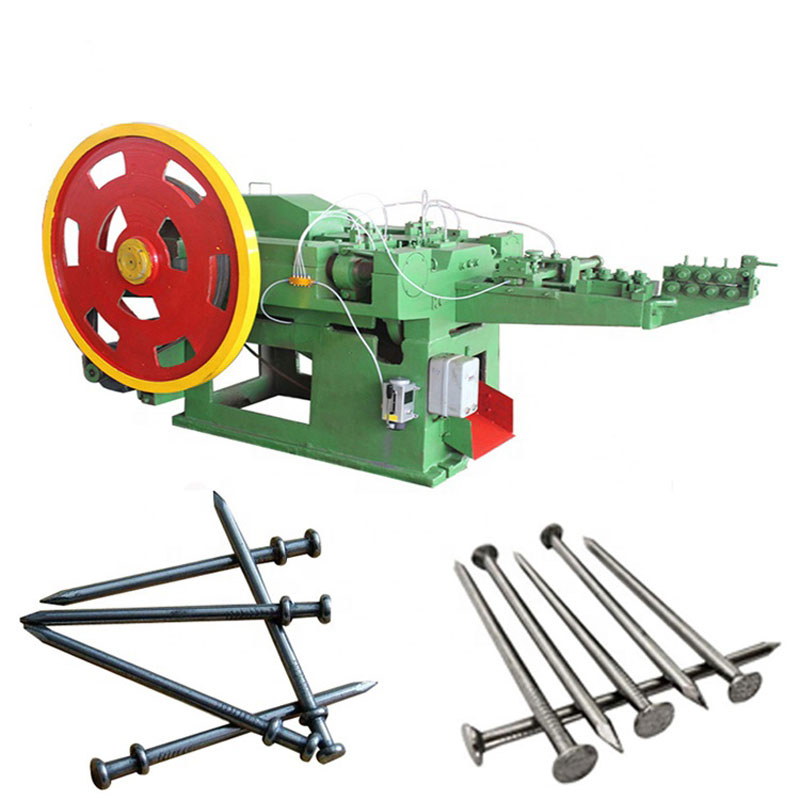

Z 94-6.5 C iron steel nail making machine
Automatic C model nail making machine with features of high speed,low noise,less punch.C model automatic nail making machine produce all sizes of steel nails,rivet,concrete nails and other round nails,specially for welding nails and roofing nails,U shape nails.Automatic C model nail making machine with beautiful design and compact structure,easy and safe operation
Z 94-6.5 C automatic nail making machine is professional for nail length from 100 mm to 200 mm,capacity is 160 pcs/min
|
Data |
unit |
Z94-6.5C |
|
|
Maximum nail thickness |
mm |
6.5 |
|
|
Minimum nail thickness |
mm |
4.5 |
|
|
Maximum nail length |
mm |
200 |
|
|
Minimum nail length |
mm |
100 |
|
|
Design capacity |
pcs/min |
160 |
|
|
Motor power |
kw |
11 |
|
|
Machine weight |
kg |
5000 |
|
|
Dimension |
mm |
3200x2200x2200 |
Auxiliary equipment:wire pay-off,cutter grinder,nail washing machine
|
|
|
|
Wire pay-off |
Cutter grinder |
|
Model |
SD-400 |
SD-600 |
SD-1000 |
SD-2000 |
Nail Polishing machine |
|
Capacity |
400kg |
600kg |
1000kg |
2000kg |
|
|
Power |
3kw |
4kw |
7.5kw |
11kw |
|
|
Dimension |
1640x90 x1000 |
1960*1070 *1400 |
2000x1500 x1400 |
2500x1500 x1600 |
Main wearing parts：Nail mold,puncher,cutter
|
|
|
|
|
Nail mold |
Nail puncher |
Nail cutter |
